6AV2124-2DC01-0AX0 HMI Panels

صفحه اصلی/HMI Panels/Comfort panels/6AV2124-2DC01-0AX0 HMI Panels

6AV2124-2DC01-0AX0 HMI Panels

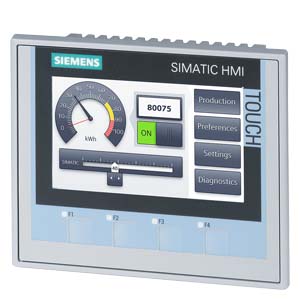

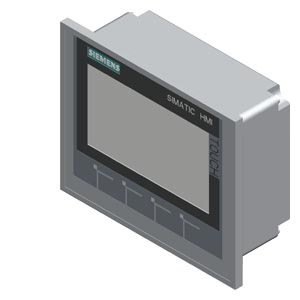

SIMATIC HMI KTP400 COMFORT, COMFORT PANEL, TOUCH AND KEY OPERATION, 4″ WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 4 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11
500 Process screens

4″ touch + key

 4″ key

Type of operation
 1,024 Tags Wide-screen TFT,16 milion colors, LED backlight Display
 . vector graphics  4.3″ Size(in inches)
 . /f(t) , f(X) Bar graphs/curve diagrams  480*272 Resolution(W * H in pixels)
 – Faceplates 80,000

MTBF6) of backlight (in h)

100 Recipes 140*116 ,  152*188 Font dimensions(in mm)
 . /. Arshiving /Visual Basic Scripts touch screen ormembrane keypad Control elements
STATUS/CONTROL,diagnostics viewer  Programming device functions 4(with LED) / -8(with LED) / . function keys (programmable)/system keys
Connection to controller Usable memory
. /. SIMATIC S7/ SIMATIC WinAC 4 MByte User memory
. /. SINUMERIK/SIMOTION 4 MByte /512 KByte Memory for option/recipens
 . /. Allen Bradley/Mitsubishi .    Message buffer
. /. Modicon/Omron Interface
Engineering software  .3) / . / . / 1 Serial/MPL/PROFIBUSDP/PROFINET(Ethernet)
WinCC comfort V11 or higher Configuration 1 / 1 USB host/USB device
Options, applications  . / . / – Slot for CF/multimedia/SD
. / . / . Sm@rtServer/Audit/Logon Functionality(when configured with WinCC TIA portal)
. / . Opc Server/Internet Explorer 2,000/32 Ararm logging (number of alarms/alarm classes)
دانلود اطلاعات فنی محصول

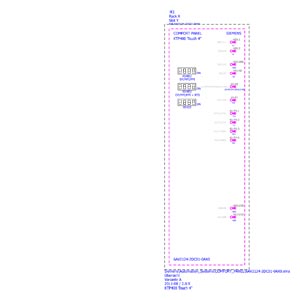

      دانلود شمــاتیک محصول



توضیحات

توضیحات  فروش HMI Panels کد 6AV2124-2DC01-0AX0:

SIMATIC HMI KTP400 COMFORT, COMFORT PANEL, TOUCH AND KEY OPERATION, 4″ WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 4 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11
