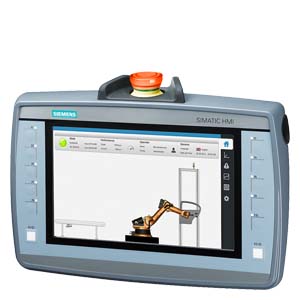

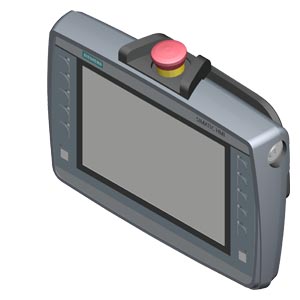

SIMATIC HMI KTP900F MOBILE, 9.0” TFT DISPLAY, 800 X 480 PIXELS,16M COLOR, KEY AND TOUCH OPERATION, 10 FUNCTION KEYS, 1 X PROFINET/INDUSTRIAL ETHERNET INTERFACE; 1 X MULTIMEDIA CARD, 1 X USB, ACKNOWLEDGEMENT SWITCH, EMERGENCY-STOP BUTTON, CONFIGURABLE FROM WINCC COMFORT V13 SP1
| 500 | Process screens | 9″ touch + key | Type of operation |
| 2,048 | Tags | Wide-screen TFT,16 milion colors, LED backlight | Display |
| . | vector graphics | 9″ | Size(in inches) |
| . /f(t) , f(X) | Bar graphs/curve diagrams | 800*480 | Resolution(W * H in pixels) |
| – | Faceplates | 50,000 | MTBF6) of backlight (in h) |
| 300 | Recipes | 307*201 , 307*224 | Font dimensions(in mm) |
| . /. | Arshiving /Visual Basic Scripts | touch screen or membrane keypad | Control elements |
| STATUS/CONTROL,diagnostics viewer | Programming device functions | 10 (with LED) / – | function keys (programmable)/system keys |
| Connection to controller | Usable memory | ||
| . /- | SIMATIC S7/ SIMATIC WinAC | 12 MByte | User memory |
| . /. | SINUMERIK/SIMOTION | 12 MByte / 2 MByte | Memory for option/recipens |
| . /. | Allen Bradley/Mitsubishi | . | Message buffer |
| . /. | Modicon/Omron | Interface | |
| Engineering software | – / . / . / 1 | Serial/MPL/PROFIBUSDP/PROFINET(Ethernet) | |
| WinCC comfort V11 or higher | Configuration | – / 1 | USB host/USB device |
| Options, applications | . / . / – | Slot for CF/multimedia/SD | |
| . / . / . | Sm@rtServer/Audit/Logon | Functionality(when configured with WinCC TIA portal) | |
| – / . | Opc Server/Internet Explorer | 4,000/32 | Ararm logging (number of alarms/alarm classes) |
