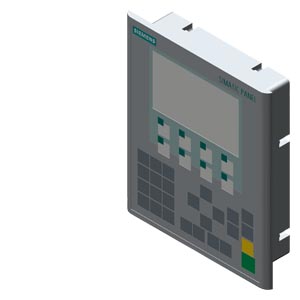

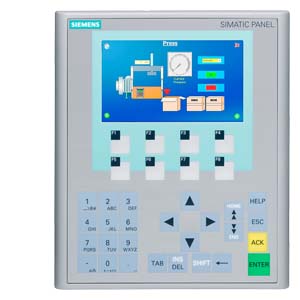

SIMATIC HMI KP400 BASIC COLOR PN, BASIC PANEL, KEY OPERATION, 4″ WIDESCREEN-TFT-DISPLAY, 256 COLORS, PROFINET INTERFACE, CONFIGURATION FROM WINCC BASIC V11 SP2/ STEP 7 BASIC V11 SP2, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD
| 50 | Process screens | 3.6″ key 4″ key | Type of operation |
| 200 , 250 | Tags | FSTN-LCD black -white TFT liquid crystal | Display |
| . | vector graphics | 3.6″ , 4.3″ | Size(in inches) |
| . /f(t) | Bar graphs/curve diagrams | 240*80 , 480*272 | Resolution(W * H in pixels) |
| – | Faceplates | 50,000 | MTBF6) of backlight (in h) |
| 5 | Recipes | 165*97 , 150*186 | Font dimensions(in mm) |
| . / – | Arshiving /Visual Basic Scripts | membrane keypad | Control elements |
| – | Programming device functions | 10/. , 8/26 | function keys (programmable)/system keys |
| Connection to controller | Usable memory | ||
| . /. | SIMATIC S7/ SIMATIC WinAC | 1 MByte | User memory |
| . /. | SINUMERIK/SIMOTION | -/40 KByte | Memory for option/recipens |
| . /. | Allen Bradley/Mitsubishi | . | Message buffer |
| . / – | Modicon/Omron | Interface | |
| Engineering software | .-/-/- | Serial/MPL/PROFIBUSDP/PROFINET(Ethernet) | |
| WinCC Basic V11 or higher | Configuration | – | USB host/USB device |
| Options, applications | -/-/- | Slot for CF/multimedia/SD | |
| – / – / – | Sm@rtServer/Audit/Logon | Functionality(when configured with WinCC TIA portal) | |
| – /- / – | Opc Server/Internet Explorer | 200/32 | Ararm logging (number of alarms/alarm classes) |
