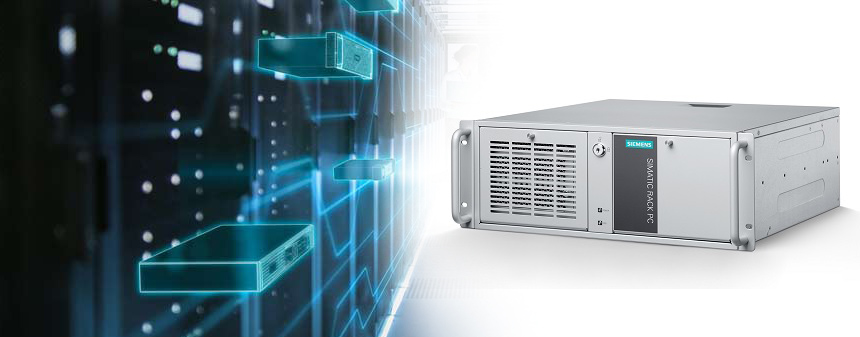

The new SIMATIC IPC347E is the entry-level version of the SIMATIC industrial PCs in 19″ format.
It is especially suitable for production applications requiring a PC with greater robustness and a higher availability than office PCs. In particular for visualization and SCADA tasks, data acquisition and management, and measuring and testing tasks in discrete manufacturing or process automation, but also, for example, in logistics or laboratory automation.
It is designed for 24-hour continuous operation, even with increased temperature, vibration, shock and EMC requirements, and comes with overpressure ventilation and dust protection filters. Continuous operation without power loss is ensured even in ambient temperatures up to 40 °C
Reliable continuous operation right from the beginning due to run-in test under maximum load in production
No additional dust protection measures required thanks to filter mat and overpressure ventilation
Robust all-metal enclosure
Powerful processors up to Intel Core i5 of the 4th generation
RAM can be expanded up to 16 GB
Pre-installed 64-bit operating system Windows 7 Ultimate available
Available in 5 equipment versions
Can be expanded easily, e.g. additional RAM
All versions are available from stock to ensure short delivery times
Space-saving and cost-optimized mounting in control cabinets with depths starting at 500 mm
۷ x USB interfaces, of which 2 x USB3.0 interfaces and one internal USB interface
Expandable with 7 x PCI(e) slots
Easy connection to existing systems with VGA, DVI, PS2, and 2 x COM (RS232/RS422/RS485) interfaces
۲ x Gigabit Ethernet ports
Fan and filter mats can be replaced without tools
Lockable front cover
Front USB (with lockable front cover) for easy maintenance access
Prepared for mounting on telescopic rails
As a member of the SIMATIC IPC family, the IPC347E is certified for use in industrial environments and service and support worldwide.
Design and function
Five fixed, price-optimized configurations are available that differ by their processor type, RAM, optical drives, and operating system.
In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. For more information about industrial security, please visit:
